N X - A W - 2 0 1 5 0

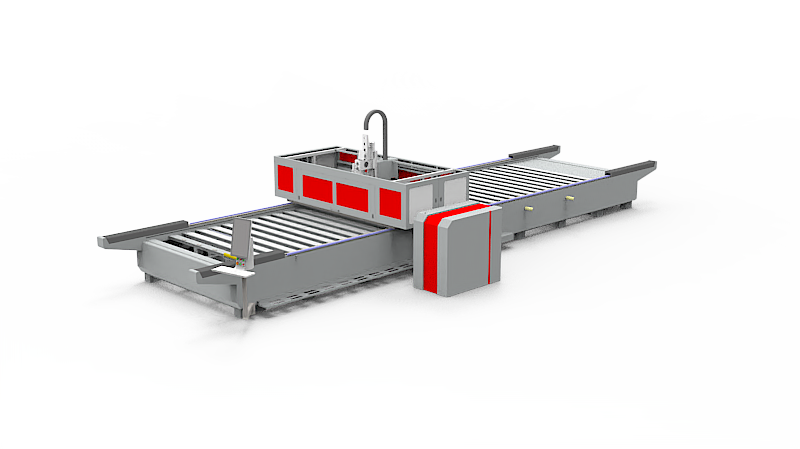

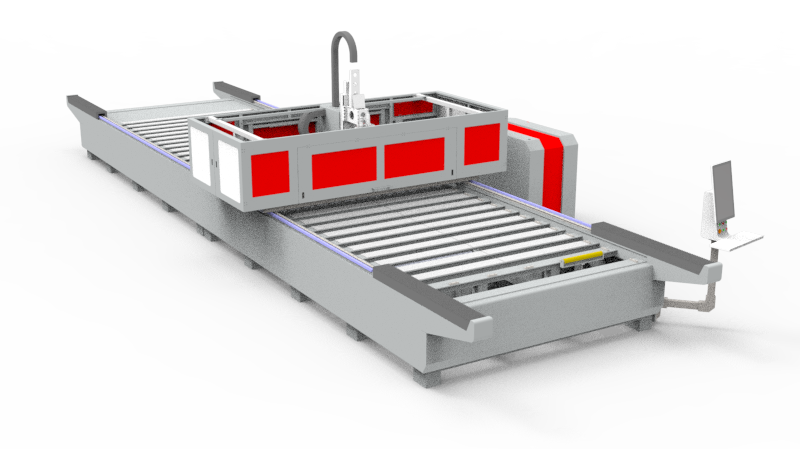

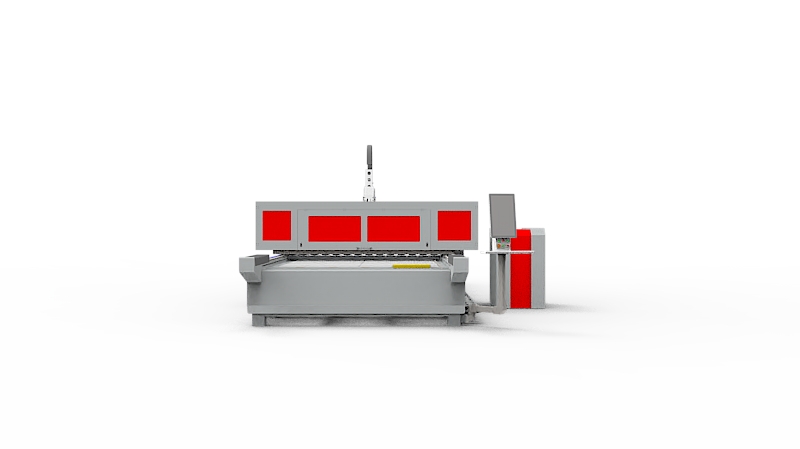

以上为效果图，仅供参考
技术规格
技术指标Technical specifications | 技术参数Technical parameters |
设备型号Type of equipment | NX-RW-2000W | NX-RW-3000W | NX-RW-4000W | NX-RW-6000W |
激光功率Laser power | 2000W | 3000W | 4000W | 6000W |
波长范围Wavelength | 1080±10nm |
有效行程Effective travel | 2000mm(X轴)*15000mm(Y轴)*400mm(Z轴) 支持定制Support for customization |
机械定位精度Mechanical positioning accuracy | ±0.05mm/1000mm |
最大空程速度Maximum air speed | 20m/min |
指示光Indicating light | 同轴红光Coaxial red light |
冷却方式Cooling mode | 水冷The water is cold |
焊接熔深Welding penetration | ＜3mm | ＜4mm | ＜5mm | ＜8mm |
工作电压Operating voltage | 380V±10% 50Hz/60Hz |

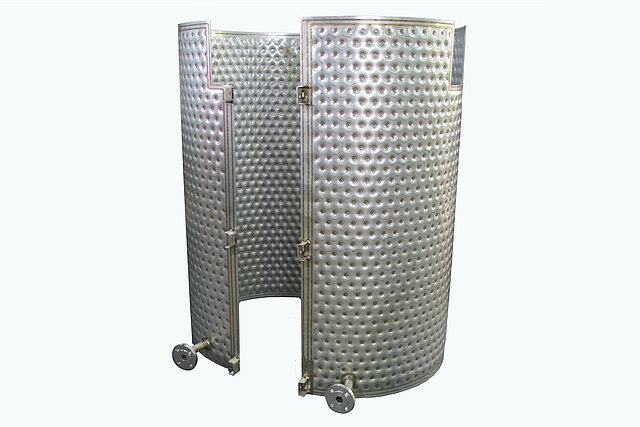

应用范围Scope of application | 板板焊、瓦楞板、板管焊等 Plate welding, corrugated plate, plate and tube welding |
适用行业
适用于啤酒设备、生物发酵、石油化工、医疗装备、电力、环保、新能源、食品等众多产品及行业。
